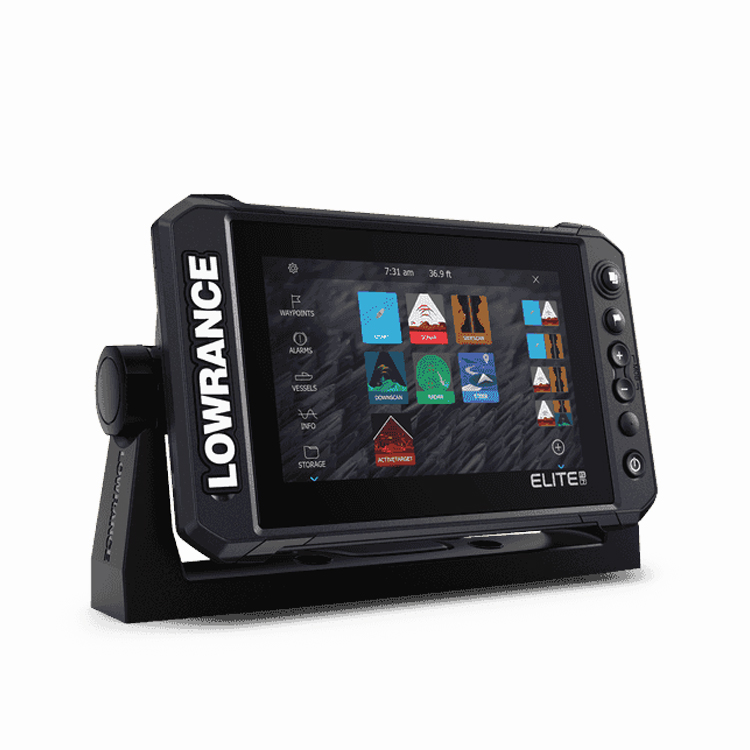

Elite 7 FS (No Transducer)
R23,050.00
ELITE 7 FS (NOXD) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and full control of your Lowrance Autopilot, Radar and Ghost Trolling Motor.
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ Live Sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to compatibility with a wide range of chart options, Elite FS gives you all the tools you need to find and catch more fish.
Find More Fish with Proven Lowrance Sonar
See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal™. Get the best of CHIRP sonar and DownScan Imaging™ on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.
Target Fish Live with New ActiveTarget™ Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget™ Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.
Multitude of Chart Options
Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of chart options, including C-MAP®, Navionics® and more.
Key Features
- CHIRP SONAR WITH FISHREVEAL™
- ACTIVETARGET™ LIVE SONAR READY
- ACTIVE IMAGING 3-IN-1 READY
- FISHREVEAL™ SMART TARGET VIEW
- MAPPING OPTIONS INCLUDE C-MAP®,
- C-MAP® GENESIS, NAVIONICS® AND MORE
- C-MAP® GENESIS LIVE ONSCREEN MAPPING
- HIGH-RESOLUTION MULTI-TOUCH TOUCHSCREEN
- INTEGRATED WIRELESS, NMEA 2000® AND ETHERNET CONNECTIVITY
- FULL TOUCHSCREEN CONTROL OF POWER-POLE® ANCHORS AND GHOST® TROLLING MOTOR
- 3 YEAR WARRANTY
Specifications
*No NMEA0183 for VHF Radios
- Screen Brightness: >1200 nits
- SD Card Storage: 1 micro SD card up to 32GB
- Ethernet Ports: 1 x 100Mbit
- Warranty Period: 3 Year + 2 additional years of upgrade options Totaling 5 years
- Weight: 1.90 lbs (0.90 kg)
- Update rate: 10 Hz
- GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
- Shock Vibration: 100,000 cycles of 20 G
- Compass Safe: 12″ (300mm)
- Supply Voltage: 12v DC (10.8-17VDC)
- GPS Receiver Channels: 16
- NMEA 2000 Connectivity: 1x Micro-C
- Power Consumption max: 2.0A @ 13VDC with backlight on full
- Power Consumption typical: 2.0A @ 13VDC with backlight on full
- Power Consumption min: 2.0A @ 13VDC with backlight on full
- Position Accuracy: 20m RMS
- Waypoints, Routes, Tracks: 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
- Time to First Fix: 30s
- Recommended Fuse Rating: 3A
- Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
- Radar compatibility: 4G (Broadband)3G (Broadband) Halo20 (Pulse Compression Dome Radar) Halo20+ (Pulse Compression Dome Radar) Halo24 (Pulse Compression Dome Radar)
- Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
- Viewing Angles: 50° top60°bottom70° left/right
- Humidity: 60°C, 95% relative humidity (RH) for 18 hours
- Display Resolution: 800×480
- AIS: AIS Chart overlay. Target vessel details.
- Charts supported: C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
- Cartography included: C-MAP Contour + (US models)Navionics basemap (AMER, AUS/NZ and ROW models)
- Correction: DGPSWAASMSASEGNOSGLONASS
- Mounting Type: Gimbal Bracket or Dash Flush Mount
- Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
- Sonar Compatibility: Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
- Item Connectivity WiFi: Internal 802.11b/g/n
- Waterproofrating: IPX7 with card door closed
- Interface: Multi-Touch TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power
- Internal Storage: None
- PC Connectivity: None
- Video: None
- Digital Switching: None
- Autopilot: Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway: Backlight Color
- Pure White LED: N2K PGNs: Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List – WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration
- Weather: SiriusXM via WM-4 (USA only): Multimedia SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products
- Languages: Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese – (simplified) China/简体中文, Chinese – (traditional) Taiwan/繁體中文Eastern European Language Pack:Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ УкраїнськаMiddle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano
What's in the box?
- Power Only Cable
- FUSE-1 Set of 3 x 3-amp Fuses
- Elite FS™ 7 Bracket
- Elite FS™ 7 Suncover
